PE Squeeze Film

PP Non-woven Fabric

Cleaned Film

Blown Film

Product Introduction
Equipment structure
Technical Parameters
Wear parts
custom made

Product Introduction

Synchronous Extrusion

Motor-driven dual rollers rotate synchronously in opposite directions to extrude materials.

Direct Pelletizing

Materials are extruded and molded in a single pass within the roller die before being ejected.

Screening and Crushing

Preliminary products are conveyed via chain to the crushing chamber, where qualified particles are screened out.

Recirculating Production

Screened residue is automatically returned, mixed with fresh material, and reprocessed for continuous pelletization.

Technical Parameters

	Gearbox	Barrel diameter	Screw diameter	Screw length	Motor	Material	Mold Head
Main unit	330 hardened tooth surface	290mm	220mm	3.5m	90KW 6-pole	38CrMoA1N nitriding	/
Second unit	280 hardened tooth surface	245mm	180mm	1.8m	37KW 6-pole	38CrMoA1N nitriding	Hydraulic double die head
Third unit	280 hardened tooth surface	220mm	155mm	1.6m	30KW 6-pole	38CrMoA1N nitriding	Hydraulic single die head
Pelletizer	Model 240 5.5kW slip-type motor
Loader	Stainless steel 2.5m long
Conveyor belt	Length 5 meters, width 0.8 meters
Pulverizer	Model: 1200 Motor: 55KW 4-pole Washing drum motor: 18.5KW 4-pole

Equipment structure

Main machine

Second machine

Water tank

Blow fan

Cutter

Electric box

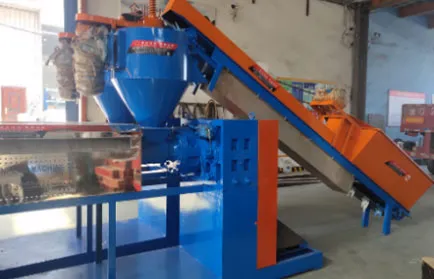

Main machine

Screw diameter: 150mm
Screw length: 2600mm
Screw material: 38CrMoAl(HV >=950)
Gearbox: ZLYJ250（Changzhou Jiuyuan）
Motor: 45KW （Nanjing Yousu）
Inverter: 55KW（Pioneer）
Heater: Electromagnetic heater
Feeder: Automatic feeder with conveyor belt
screen changer: 300mm double hydraulic

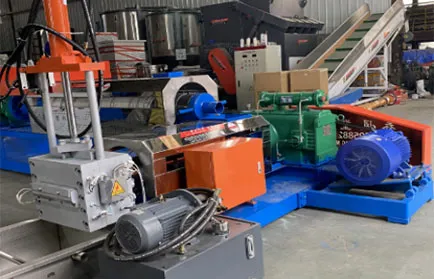

Second machine

Screw diameter: 125mm
Screw length: 1200mm
Screw material: 38CrMoAl(HV >=950)
Gearbox: ZLYJ200（Changzhou Jiuyuan）
Motor: 18.5KW （Nanjing Yousu）
Inverter: 22KW（Pioneer）
Screen changer: 300mm single hydraulic
Heater: stainless steel heater

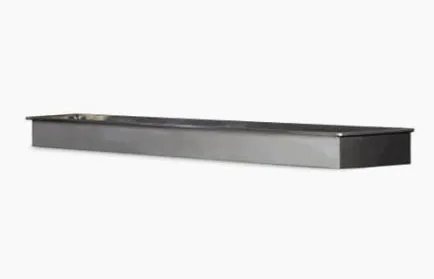

Water tank

Material: 201 stainless steel

Length: 4000mm

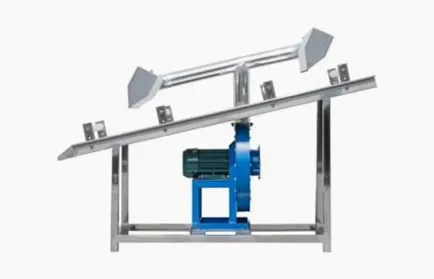

Blow fan

Motor: 2.2KW

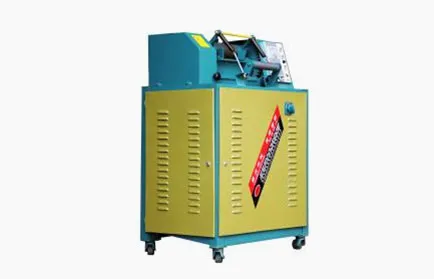

Cutter

Model: 200

Motor: 3KW

Inverter: 4KW

Electric box

Brand: CHINT

Wear parts

Main wear parts

Bearing、Belt pulley、Gear、Belt、Pelletizer blade、Chain sprocket、Pelletizer upper and lower rollers

Service and Support

24-hour online service
2-year warranty
Professional offline service
Global agency consulting service

Download Manual

Video

Related products

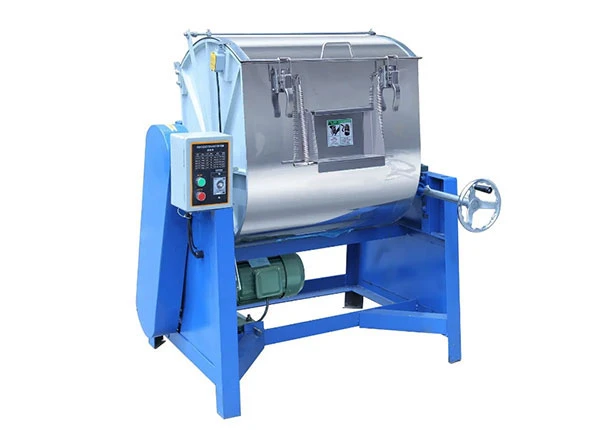

Plastic Color Mixers
