PET food-grade packaging
PET food container
PET plastic bottles
PET mineral water bottles
  1. Product Introduction
  2. Equipment structure
  3. Technical Parameters
  4. Wear parts
  5. custom made
Technical Parameters
300 Type claw three-step granulator
280 Type claw three-step granulator
250 Type round feed three-step granulator
225 Type claw-type feeding granulator
200 Type claw-type feeding three-step granulator
180 Type high-end granulator
160 Type granulator
150 Type round feed granulator
Name Specification
Conveyor Length 6000mm
Width 500mm
Motor 1.5KW
Main machine Screw diameter 300mm
Screw length 5500mm
Screw material 38CrMoAl (HV >=950)
Gearbox ZLYJ450 (Changzhou Jiuyuan)
Motor 180KW (Nanjing Yousu)
Inverter 200KW (Pioneer)
Heater Electromagnetic heater100KW=5pcs
Feeder Automatic feeder
Second stage Screw diameter 225mm
Screw length 2200mm
Screw material 38CrMoAla (HV >=950)
Gearbox ZLYJ315 (Changzhou Jiuyuan)
Motor 75KW (Nanjing Yousu)
Inverter 90KW (Pioneer)
Screen changer 500mm*2 double hydraulic
Heater Ceramic heater
Third stage Screw diameter 225mm
Screw length 2000mm
Screw material 38CrMoAla(HV >=950)
Gearbox ZLYJ315 (Changzhou Jiuyuan)
Motor 55KW (Nanjing Yousu)
Inverter 75KW(Pioneer)
Screen changer 500mm*2 double hydraulic
Heater Stainless steel  heater
Water tank Material 201 Stainless steel
Length 6000mm
Blow fan Motor 1.5KW
Cutter Model 950
Motor 11KW
Inverter 15KW
Silo Cap 3000kg
Including 3KW fan, hopper, hose, tee
Electric box Brand CHANT
Name Specification
Conveyor Length 6000mm
Width 500mm
Motor 1.5KW
Main machine Screw diameter 280mm
Screw length 5200mm
Screw material 38CrMoAl (HV >=950)
Gearbox ZLYJ420 (Changzhou Jiuyuan)
Motor 160KW (Nanjing Yousu)
Inverter 180KW (Pioneer)
Heater Electromagnetic heater 100KW=2pcs, 80KW=3pcs
Feeder Automatic feeder
Second stage Screw diameter 200mm
Screw length 2000mm
Screw material 38CrMoAla (HV >=950)
Gearbox ZLYJ315 (Changzhou Jiuyuan)
Motor 55KW (Nanjing Yousu)
Inverter 75KW (Pioneer)
Screen changer 450mm*2 double hydraulic
Heater Ceramic heater
Third stage Screw diameter 200mm
Screw length 1800mm
Screw material 38CrMoAla(HV >=950)
Gearbox ZLYJ280 (Changzhou Jiuyuan)
Motor 45KW (Nanjing Yousu)
Inverter 55KW(Pioneer)
Screen changer 450mm*2 double hydraulic
Heater Stainless steel heater
Water tank Material 201 Stainless steel
Length 6000mm
Blow fan Motor 1.5KW
Cutter Model 950
Motor 11KW
Inverter 15KW
Silo Cap 3000kg
Including 3KW fan, hopper, hose, tee
Electric box Brand CHANT
Name Specification
Conveyor Length 5000mm
Width 290mm
Motor 2.2KW
Main machine Screw diameter 250mm
Screw length 4000mm
Screw material 38CrMoAl (HV >=950)
Gearbox ZLYJ375 (Changzhou Jiuyuan)
Motor 132KW (Nanjing Yousu)
Inverter 160KW (Pioneer)
Heater Electromagnetic heater 80KW=4pc
Feeder Automatic feeder
Second stage Screw diameter 180mm
Screw length 2000mm
Screw material 38CrMoAla (HV >=950)
Gearbox ZLYJ280 (Changzhou Jiuyuan)
Motor 55KW (Nanjing Yousu)
Inverter 75KW (Pioneer)
Screen changer 400mm*2 double hydraulic
Heater Ceramic heater
Second machine Screw diameter 180mm
Screw length 1800mm
Screw material 38CrMoAla(HV >=950)
Gearbox ZLYJ250 (Changzhou Jiuyuan)
Motor 45KW (Nanjing Yousu)
Inverter 55KW(Pioneer)
Screen changer 400mm*2 single hydraulic
Heater Stainless steel heater
Water tank Material 201 Stainless steel
Length 6000mm
Blow fan Motor 1.1KW
Cutter Model 600
Motor 7.5KW
Inverter 11KW
Silo Cap 2000kg
Including 3KW fan, hopper, hose, tee
Electric box Brand CHANT
Name Specification
Conveyor Length 5000mm
Width 500mm
Motor 1.5KW
Main machine Screw diameter 225mm
Screw length 3500mm
Screw material 38CrMoAl (HV >=950)
Gearbox ZLYJ330 (Changzhou Jiuyuan)
Motor 110KW (Nanjing Yousu)
Inverter 132KW (Pioneer)
Heater Electromagnetic heater 80KW=3pc
Screen changer 350mm double hydraulic
Feeder Automatic feeder with conveyor
Second machine Screw diameter 160mm
Screw length 1500mm
Screw material 38CrMoAla (HV >=950)
Gearbox ZLYJ250 (Changzhou Jiuyuan)
Motor 37KW (Nanjing Yousu)
Inverter 45KW (Pioneer)
Screen changer 350mm single hydraulic
Heater Ceramic heater
Water tank Material 201 Stainless steel
Length 5000mm
Blow fan Motor 1.1KW
Cutter Model 240
Motor 5.5KW
Inverter 7.5KW
Silo Cap 1000kg
Including 2.2KW fan, hopper, hose, tee
Electric box Brand CHANT
Name Specification
Conveyor Length 5000mm
Width 500mm
Motor 1.5KW
Main machine Screw diameter 200mm
Screw length 3200mm
Screw material 38CrMoAl (HV >=950)
Gearbox ZLYJ315 (Changzhou Jiuyuan)
Motor 90KW (Nanjing Yousu)
Inverter 110KW (Pioneer)
Heater Electromagnetic heater 60KW=3pc
Feeder Automatic feeder with conveyor
Second stage Screw diameter 160mm
Screw length 1400mm
Screw material 38CrMoAla (HV >=950)
Gearbox ZLYJ225 (Changzhou Jiuyuan)
Motor 37KW (Nanjing Yousu)
Inverter 45KW (Pioneer)
Screen changer 350mm*2double hydraulic
Heater Ceramic heater
Third machine Screw diameter 150mm
Screw length 1400mm
Screw material 38CrMoAla(HV >=950)
Gearbox ZLYJ225 (Changzhou Jiuyuan)
Motor 30KW (Nanjing Yousu)
Inverter 37KW(Pioneer)
Screen changer 350mm single hydraulic
Heater Ceramic heater
Water tank Material 201 Stainless steel
Length 4000mm
Blow fan Motor 1.1KW
Cutter Model 220
Motor 4KW
Inverter 5.5KW
Silo Cap 1000kg
Including 2.2KW fan, hopper, hose, tee
Electric box Brand CHANT
Name Specification
Main machine Screw diameter 180mm
Screw length 3200mm
Screw material 38CrMoAl (HV >=950)
Gearbox ZLYJ315 (Changzhou Jiuyuan)
Motor 75KW (Nanjing Yousu)
Inverter 90KW (Pioneer)
Heater Electromagnetic heater 60KW=3pc
Screen changer 300mm*2 double hydraulic
Feeder Automatic feeder with conveyor
Second machine Screw diameter 150mm
Screw length 1400mm
Screw material 38CrMoAla (HV >=950)
Gearbox ZLYJ225 (Changzhou Jiuyuan)
Motor 30KW (Nanjing Yousu)
Inverter 37KW (Pioneer)
Screen changer 300mm single hydraulic
Heater Ceramic heater
Water tank Material 201 Stainless steel
Length 4000mm
Blow fan Motor 1.1KW
Cutter Model 220
Motor 4KW
Inverter 5.5KW
Silo Cap 1000kg
Including 2.2KW fan, hopper, hose, tee
Electric box Brand CHANT
Name Specification
Main machine Screw diameter 160mm
Screw length 2400mm
Screw material 38CrMoAl (HV >=950)
Gearbox ZLYJ250 (Changzhou Jiuyuan)
Motor 55KW (Nanjing Yousu)
Inverter 75KW (Pioneer)
Heater Electromagnetic heater 60KW=2pc
Feeder Automatic feeder with conveyor
Second machine Screw diameter 135mm
Screw length 1200mm
Screw material 38CrMoAla (HV >=950)
Gearbox ZLYJ200 (Changzhou Jiuyuan)
Motor 18.5KW (Nanjing Yousu)
Inverter 22KW (Pioneer)
Screen changer 300mm single hydraulic
Heater Ceramic heater
Water tank Material 201 Stainless steel
Length 4000mm
Blow fan Motor 2.2KW
Cutter Model 200
Motor 3KW
Inverter 4KW
Silo Cap 1000kg
Including 2.2KW fan, hopper, hose, tee
Electric box Brand CHANT
Name Specification
Main machine Screw diameter 150mm
Screw length 2200mm
Screw material 38CrMoAl (HV >=950)
Gearbox ZLYJ225 (Changzhou Jiuyuan)
Motor 45KW (Nanjing Yousu)
Inverter 55KW (Pioneer)
Heater Electromagnetic heater 60KW=1pc
Feeder Automatic feeder with conveyor
Second machine Screw diameter 125mm
Screw length 1200mm
Screw material 38CrMoAla (HV >=950)
Gearbox ZLYJ180 (Changzhou Jiuyuan)
Motor 15KW (Nanjing Yousu)
Inverter 18.5KW (Pioneer)
Screen changer 240mm single hydraulic
Heater Stainless steel heater
Water tank Material 201 Stainless steel
Length 4000mm
Blow fan Motor 2.2KW
Cutter Model 200
Motor 3KW
Inverter 4KW
Silo Cap 1000kg
Including 2.2KW fan, hopper, hose, tee
Electric box Brand CHANT
Equipment structure

Conveyor

Main machine

Second stage

Third stage

Water tank

Blow fan

Cutter

Silo

Electric box

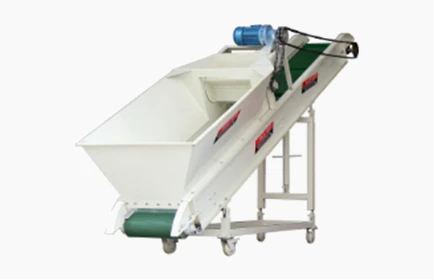

Conveyor
01
Conveyor

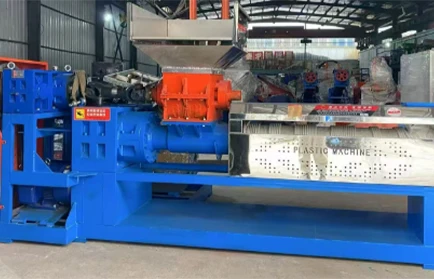

Main machine
02
Main machine

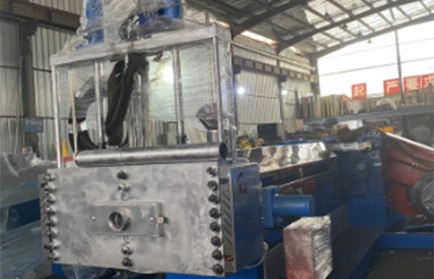

Second stage
03
Second stage

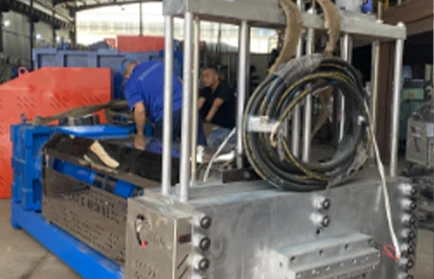

Third stage
04
Third stage

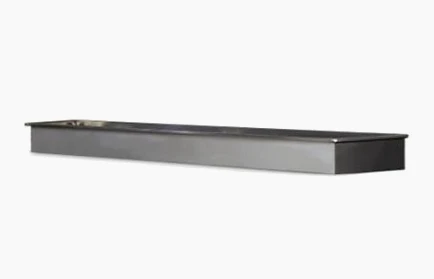

Water tank
05
Water tank
Blow fan
06

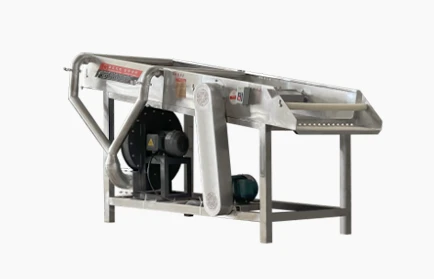

Blow fan
Cutter
07

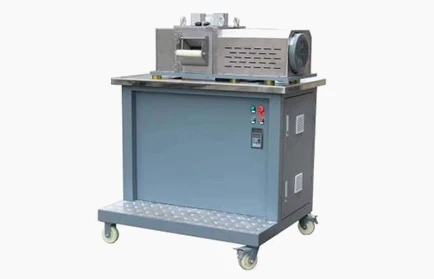

Cutter
Silo
08

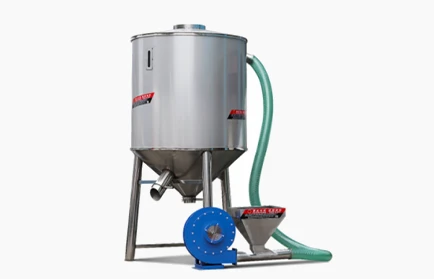

Silo
Electric box
09

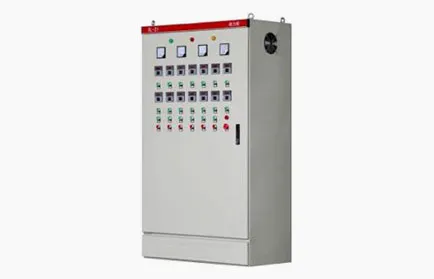

Electric box

Service and Support

  • 24-hour online service
  • 2-year warranty
  • Professional offline service
  • Global agency consulting service
