| Name | Specification | |
| Magnet conveyor | Length | 5000mm |
| Width | 380mm | |
| Main machine | Screw diameter | 200mm |
| Screw length | 5000mm | |
| Screw material | 38CrMoAla(HV >=950) | |
| Gearbox | ZLYJ450 (Changzhou Jiuyuan) | |
| Motor | 180KW (Nanjing Yousu) | |
| Inverter | 200KW (Pioneer) | |
| Screen changer | 500mm*2 hydraulic | |
| Heater | Electromagnetic heater 80KW*4pcs ceramic heater |
|
| Feeder | Quantitative automatic feeder | |
| Second machine | Screw diameter | 200mm |
| Screw length | 2200mm | |
| Screw material | 38CrMoAla(HV >=950) | |
| Gearbox | ZLYJ315 (Changzhou Jiuyuan) | |
| Motor | 75KW (Nanjing Yousu) | |
| Inverter | 90KW (Pioneer) | |
| Screen changer | 500mm single hydraulic | |
| Heater | Stainless steel heater | |
| Water tank | Material | 201 Stainless steel |
| Length | 6000mm | |
| Blow fan | Motor | 1.5KW |
| Cutter | Model | 950 |
| Motor | 11KW | |
| Inverter | 15KW | |
| Silo | Capacity | 3000kg |
| Including 3KW fan, hopper, hose, tee | ||
| Electric box | Brand | CHANT |
| Name | Specification | |
| Magnet conveyor | Length | 4000mm |
| Width | 380mm | |
| Main machine | Screw diameter | 180mm |
| Screw length | 4800mm | |
| Screw material | 38CrMoAla(HV >=950) | |
| Gearbox | ZLYJ420 (Changzhou Jiuyuan) | |
| Motor | 160KW (Nanjing Yousu) | |
| Inverter | 180KW (Pioneer) | |
| Screen changer | 450mm*2 hydraulic | |
| Heater | Electromagnetic heater 80KW*4pcs ceramic heater |
|
| Feeder | Quantitative automatic feeder | |
| Second machine | Screw diameter | 180mm |
| Screw length | 2000mm | |
| Screw material | 38CrMoAla(HV >=950) | |
| Gearbox | ZLYJ280 (Changzhou Jiuyuan) | |
| Motor | 55KW (Nanjing Yousu) | |
| Inverter | 75KW (Pioneer) | |
| Screen changer | 450mm single hydraulic | |
| Heater | Stainless steel heater | |
| Water tank | Material | 201 Stainless steel |
| Length | 6000mm | |
| Blow fan | Motor | 1.5KW |
| Cutter | Model | 600 |
| Motor | 7.5KW | |
| Inverter | 11KW | |
| Silo | Capacity | 3000kg |
| Including 3KW fan, hopper, hose, tee | ||
| Electric box | Brand | CHANT |
| Name | Specification | |
| Magnet conveyor | Length | 4000mm |
| Width | 380mm | |
| Main machine | Screw diameter | 160mm |
| Screw length | 4500mm | |
| Screw material | 38CrMoAla(HV >=950) | |
| Gearbox | ZLYJ375 (Changzhou Jiuyuan) | |
| Motor | 132KW (Nanjing Yousu) | |
| Inverter | 160KW (Pioneer) | |
| Screen changer | 400mm*2 hydraulic | |
| Heater | Electromagnetic heater 60KW*3pcs ceramic heater |
|
| Feeder | Quantitative automatic feeder | |
| Second machine | Screw diameter | 160mm |
| Screw length | 1800mm | |
| Screw material | 38CrMoAla(HV >=950) | |
| Gearbox | ZLYJ280 (Changzhou Jiuyuan) | |
| Motor | 45KW (Nanjing Yousu) | |
| Inverter | 55KW (Pioneer) | |
| Screen changer | 400mm single hydraulic | |
| Heater | Stainless steel heater | |
| Water tank | Material | 201 Stainless steel |
| Length | 5000mm | |
| Blow fan | Motor | 1.1KW |
| Cutter | Model | 600 |
| Motor | 7.5KW | |
| Inverter | 11KW | |
| Silo | Capacity | 2000kg |
| Including 3KW fan, hopper, hose, tee | ||
| Electric box | Brand | CHANT |
| Name | Specification | |
| Magnet conveyor | Length | 4000mm |
| Width | 380mm | |
| Main machine | Screw diameter | 150mm |
| Screw length | 4000mm | |
| Screw material | 38CrMoAla(HV >=950) | |
| Gearbox | ZLYJ330 (Changzhou Jiuyuan) | |
| Motor | 110KW (Nanjing Yousu) | |
| Inverter | 132KW (Pioneer) | |
| Screen changer | 350mm*2 hydraulic | |
| Heater | Electromagnetic heater 60KW*2pcs ceramic heater |
|
| Feeder | Quantitative automatic feeder | |
| Second machine | Screw diameter | 150mm |
| Screw length | 1500mm | |
| Screw material | 38CrMoAla(HV >=950) | |
| Gearbox | ZLYJ250 (Changzhou Jiuyuan) | |
| Motor | 37KW (Nanjing Yousu) | |
| Inverter | 45KW (Pioneer) | |
| Screen changer | 350mm single hydraulic | |
| Heater | Stainless steel heater | |
| Water tank | Material | 201 Stainless steel |
| Length | 5000mm | |
| Blow fan | Motor | 1.1KW |
| Cutter | Model | 240 |
| Motor | 5.5KW | |
| Inverter | 7.5KW | |
| Silo | Capacity | 2000kg |
| Including 3KW fan, hopper, hose, tee | ||
| Electric box | Brand | CHANT |
| Name | Specification | |
| Magnet conveyor | Length | 3500mm |
| Width | 380mm | |
| Main machine | Screw diameter | 140mm |
| Screw length | 4000mm | |
| Screw material | 38CrMoAla(HV >=950) | |
| Gearbox | ZLYJ315 (Changzhou Jiuyuan) | |
| Motor | 90KW (Nanjing Yousu) | |
| Inverter | 110KW (Pioneer) | |
| Screen changer | 350mm*2 hydraulic | |
| Heater | Ceramic heater | |
| Feeder | Quantitative automatic feeder | |
| Second machine | Screw diameter | 140mm |
| Screw length | 1400mm | |
| Screw material | 38CrMoAla(HV >=950) | |
| Gearbox | ZLYJ250 (Changzhou Jiuyuan) | |
| Motor | 37KW (Nanjing Yousu) | |
| Inverter | 45KW (Pioneer) | |
| Screen changer | 350mm single hydraulic | |
| Heater | Stainless steel heater | |
| Water tank | Material | 201 Stainless steel |
| Length | 4000mm | |
| Blow fan | Motor | 1.1KW |
| Cutter | Model | 600 |
| Motor | 7.5KW | |
| Inverter | 11KW | |
| Silo | Capacity | 1000kg |
| Including 2.2KW fan, hopper, hose, tee | ||
| Electric box | Brand | CHANT |
| Name | Specification | |
| Magnet conveyor | Length | 3500mm |
| Width | 380mm | |
| Main machine | Screw diameter | 140mm |
| Screw length | 3500mm | |
| Screw material | 38CrMoAla(HV >=950) | |
| Gearbox | ZLYJ280 (Changzhou Jiuyuan) | |
| Motor | 75KW (Nanjing Yousu) | |
| Inverter | 90KW (Pioneer) | |
| Screen changer | 300mm*2 hydraulic | |
| Heater | Ceramic heater | |
| Feeder | Quantitative automatic feeder | |
| Second machine | Screw diameter | 130mm |
| Screw length | 1400mm | |
| Screw material | 38CrMoAla(HV >=950) | |
| Gearbox | ZLYJ225 (Changzhou Jiuyuan) | |
| Motor | 30KW (Nanjing Yousu) | |
| Inverter | 37KW (Pioneer) | |
| Screen changer | 300mm single hydraulic | |
| Heater | Stainless steel heater | |
| Water tank | Material | 201 Stainless steel |
| Length | 4000mm | |
| Blow fan | Motor | 1.1KW |
| Cutter | Model | 220 |
| Motor | 4KW | |
| Inverter | 5.5KW | |
| Silo | Capacity | 1000kg |
| Including 2.2KW fan, hopper, hose, tee | ||
| Electric box | Brand | CHANT |
| Name | Specification | |
| Main machine | Screw diameter | 130mm |
| Screw length | 3000mm | |
| Screw material | 38CrMoAla(HV >=950) | |
| Gearbox | ZLYJ250 (Changzhou Jiuyuan) | |
| Motor | 55KW (Nanjing Yousu) | |
| Inverter | 75KW (Pioneer) | |
| Screen changer | 240mm*2 hydraulic | |
| Heater | Ceramic heater | |
| Feeder | Quantitative automatic feeder | |
| Second machine | Screw diameter | 120mm |
| Screw length | 1200mm | |
| Screw material | 38CrMoAla(HV >=950) | |
| Gearbox | ZLYJ200 (Changzhou Jiuyuan) | |
| Motor | 22KW (Nanjing Yousu) | |
| Inverter | 30KW (Pioneer) | |
| Screen changer | 240mm single hydraulic | |
| Heater | Stainless steel heater | |
| Water tank | Material | 201 Stainless steel |
| Length | 4000mm | |
| Blow fan | Motor | 2.2KW |
| Cutter | Model | 200 |
| Motor | 3KW | |
| Inverter | 4KW | |
| Silo | Capacity | 1000kg |
| Including 2.2KW fan, hopper, hose, tee | ||
| Electric box | Brand | CHANT |

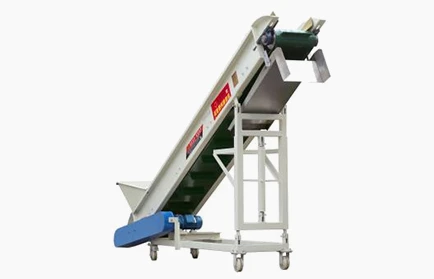

Conveyor

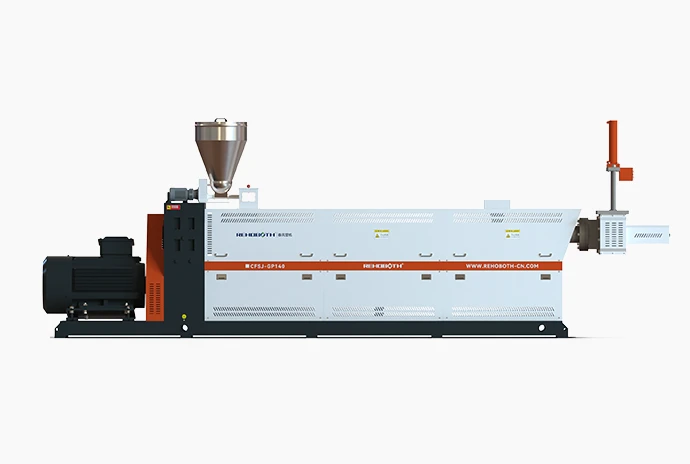

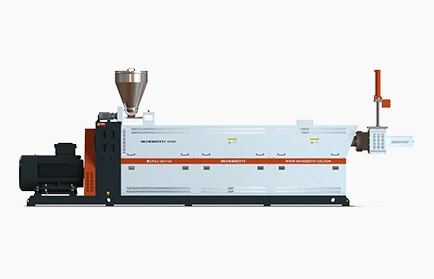

Main machine

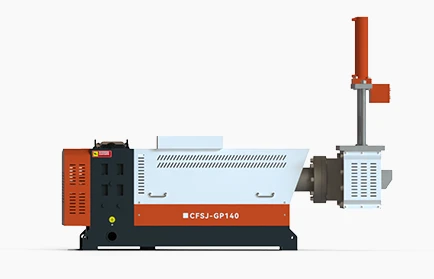

Second machine
Water tank
Blow fan

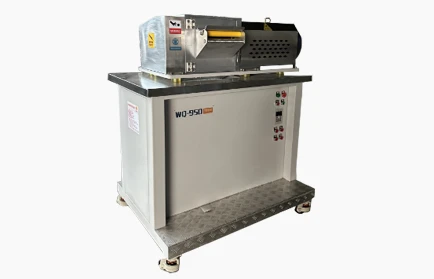

Cutter
Silo
Electric box
Through deep cleaning and closed-loop water circulation, it drastically cuts water and disposal costs while enabling recycled flakes to enter high-end fiber and packaging markets.
Direct pelletizing of washed flakes with precise IV control, producing food-contact grade pellets ready for bottle-to-bottle recycling.
