Introduction
In today's world, plastic waste management has become a critical issue. As the demand for sustainable solutions continues to grow, Rehoboth Machine offers advanced rigid plastic recycling pelletizers that transform waste plastic into valuable resources. Our state-of-the-art machinery is designed to efficiently process various types of rigid plastics, including ABS, PE, PA, PP, PS, PP-R, ABS + PC, and POM, into high-quality pellets ready for reuse.
Key Features of Rigid Plastic Recycling Pelletizer
Exceptional Durability
Constructed from high-quality materials, our rigid plastic recycling pelletizer is built to withstand the rigors of industrial use. It rapidly reduces plastic materials into uniform small particles, enhancing crushing efficiency and ensuring consistent performance over time.
Versatility
The machine offers exceptional versatility, making it suitable for processing a wide range of plastic materials with different hardness levels. Whether you're working with ABS, PE, PA, PP, or other plastic types, our pelletizer can handle the job with ease.
Customisation
We understand that every business has unique requirements. That's why our rigid plastic recycling pelletizer can be tailored to different application requirements, including crushing capacity, dimensions, and automation level. This allows you to optimize the machine for your specific production needs.

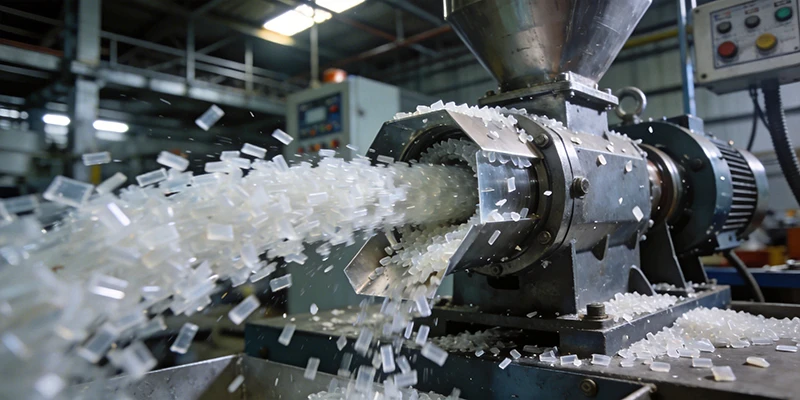

Wide Range of Applications
Our rigid plastic recycling pelletizer meets cross-industry requirements, making it an ideal solution for various sectors, including packaging, automotive, construction, and more. It can process plastic bottle caps, PE plastic baskets, PE plastic film, PE plastic sheets, and other rigid plastic materials.
Technical Specifications
Rehoboth offers a range of rigid plastic recycling pelletizer models to suit different production capacities. Here are some of the key specifications:
200 Type Granulator
- Magnet conveyor: Length 5000mm, Width 380mm
- Main machine: Screw diameter 200mm, Screw length 5000mm
- Screw material: 38CrMoAla(HV >=950)
- Gearbox: ZLYJ450 (Changzhou Jiuyuan)
- Motor: 180KW (Nanjing Yousu)
- Inverter: 200KW (Pioneer)
- Screen changer: 500mm*2 hydraulic
- Heater: Electromagnetic heater 80KW*4pcs, ceramic heater
- Feeder: Quantitative automatic feeder
- Second machine: Screw diameter 200mm, Screw length 2200mm
- Water tank: Material 201 Stainless steel, Length 6000mm
- Blow fan: Motor 1.5KW
- Cutter: Model 950, Motor 11KW, Inverter 15KW
- Silo: Capacity 3000kg, including 3KW fan, hopper, hose, tee
- Electric box: Brand CHANT
180 Type Granulator
- Magnet conveyor: Length 4000mm, Width 380mm
- Main machine: Screw diameter 180mm, Screw length 4800mm
- Screw material: 38CrMoAla(HV >=950)
- Gearbox: ZLYJ420 (Changzhou Jiuyuan)
- Motor: 160KW (Nanjing Yousu)
- Inverter: 180KW (Pioneer)
- Screen changer: 450mm*2 hydraulic
- Heater: Electromagnetic heater 80KW*4pcs, ceramic heater
- Feeder: Quantitative automatic feeder
- Second machine: Screw diameter 180mm, Screw length 2000mm
- Water tank: Material 201 Stainless steel, Length 6000mm
- Blow fan: Motor 1.5KW
- Cutter: Model 600, Motor 7.5KW, Inverter 11KW
- Silo: Capacity 3000kg, including 3KW fan, hopper, hose, tee
- Electric box: Brand CHANT
160 Type Granulator
- Magnet conveyor: Length 4000mm, Width 380mm
- Main machine: Screw diameter 160mm, Screw length 4500mm
- Screw material: 38CrMoAla(HV >=950)
- Gearbox: ZLYJ375 (Changzhou Jiuyuan)
- Motor: 132KW (Nanjing Yousu)
- Inverter: 160KW (Pioneer)
- Screen changer: 400mm*2 hydraulic
- Heater: Electromagnetic heater 60KW*3pcs, ceramic heater
- Feeder: Quantitative automatic feeder
- Second machine: Screw diameter 160mm, Screw length 1800mm
- Water tank: Material 201 Stainless steel, Length 5000mm
- Blow fan: Motor 1.1KW
- Cutter: Model 600, Motor 7.5KW, Inverter 11KW
- Silo: Capacity 2000kg, including 3KW fan, hopper, hose, tee
- Electric box: Brand CHANT
150 Type Granulator
- Magnet conveyor: Length 4000mm, Width 380mm
- Main machine: Screw diameter 150mm, Screw length 4000mm
- Screw material: 38CrMoAla(HV >=950)
- Gearbox: ZLYJ330 (Changzhou Jiuyuan)
- Motor: 110KW (Nanjing Yousu)
- Inverter: 132KW (Pioneer)
- Screen changer: 350mm*2 hydraulic
- Heater: Electromagnetic heater 60KW*2pcs, ceramic heater
- Feeder: Quantitative automatic feeder
- Second machine: Screw diameter 150mm, Screw length 1500mm
- Water tank: Material 201 Stainless steel, Length 5000mm
- Blow fan: Motor 1.1KW
- Cutter: Model 240, Motor 5.5KW, Inverter 7.5KW
- Silo: Capacity 2000kg, including 3KW fan, hopper, hose, tee
- Electric box: Brand CHANT
140 Type High-end Granulator
- Magnet conveyor: Length 3500mm, Width 380mm
- Main machine: Screw diameter 140mm, Screw length 4000mm
- Screw material: 38CrMoAla(HV >=950)
- Gearbox: ZLYJ315 (Changzhou Jiuyuan)
- Motor: 90KW (Nanjing Yousu)
- Inverter: 110KW (Pioneer)
- Screen changer: 350mm*2 hydraulic
- Heater: Ceramic heater
- Feeder: Quantitative automatic feeder
- Second machine: Screw diameter 140mm, Screw length 1400mm
- Water tank: Material 201 Stainless steel, Length 4000mm
- Blow fan: Motor 1.1KW
- Cutter: Model 600, Motor 7.5KW, Inverter 11KW
- Silo: Capacity 1000kg, including 2.2KW fan, hopper, hose, tee
- Electric box: Brand CHANT
140 Type Granulator
- Magnet conveyor: Length 3500mm, Width 380mm
- Main machine: Screw diameter 140mm, Screw length 3500mm
- Screw material: 38CrMoAla(HV >=950)
- Gearbox: ZLYJ280 (Changzhou Jiuyuan)
- Motor: 75KW (Nanjing Yousu)
- Inverter: 90KW (Pioneer)
- Screen changer: 300mm*2 hydraulic
- Heater: Ceramic heater
- Feeder: Quantitative automatic feeder
- Second machine: Screw diameter 130mm, Screw length 1400mm
- Water tank: Material 201 Stainless steel, Length 4000mm
- Blow fan: Motor 1.1KW
- Cutter: Model 220, Motor 4KW, Inverter 5.5KW
- Silo: Capacity 1000kg, including 2.2KW fan, hopper, hose, tee
- Electric box: Brand CHANT
130 Type Granulator
- Main machine: Screw diameter 130mm, Screw length 3000mm
- Screw material: 38CrMoAla(HV >=950)
- Gearbox: ZLYJ250 (Changzhou Jiuyuan)
- Motor: 55KW (Nanjing Yousu)
- Inverter: 75KW (Pioneer)
- Screen changer: 240mm*2 hydraulic
- Heater: Ceramic heater
- Feeder: Quantitative automatic feeder
- Second machine: Screw diameter 120mm, Screw length 1200mm
- Water tank: Material 201 Stainless steel, Length 4000mm
- Blow fan: Motor 2.2KW
- Cutter: Model 200, Motor 3KW, Inverter 4KW
- Silo: Capacity 1000kg, including 2.2KW fan, hopper, hose, tee
- Electric box: Brand CHANT

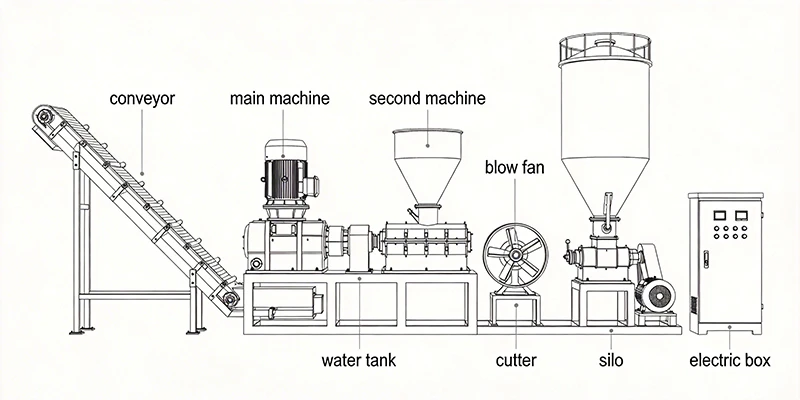

Equipment Structure
Our rigid plastic recycling pelletizer consists of several key components:
- Conveyor: Transports the plastic materials to the main machine.
- Main machine: Processes the plastic materials into pellets.
- Second machine: Further refines the pellets for consistent quality.
- Water tank: Cools the pellets to maintain their shape and quality.
- Blow fan: Dries the pellets after cooling.
- Cutter: Cuts the plastic materials into uniform pellets.
- Silo: Stores the finished pellets.
- Electric box: Controls the operation of the entire system.
Service and Support
At Rehoboth Machine, we are committed to providing exceptional service and support to our customers. Here are some of the key benefits of choosing our rigid plastic recycling pelletizer:
- 24-hour online service: Our team is available around the clock to assist with any questions or issues.
- 2-year warranty: We stand behind the quality of our products with a comprehensive warranty.
- Professional offline service: Our technicians can provide on-site support and maintenance.
- Global agency consulting service: We offer consulting services to help you optimize your plastic recycling operations.
Conclusion
Rehoboth's rigid plastic recycling pelletizer is an advanced solution for efficient plastic waste management. With its exceptional durability, versatility, and customisation options, it can help businesses transform waste plastic into valuable resources. Whether you're looking to reduce your environmental footprint or improve your production efficiency, our rigid plastic recycling pelletizer is the ideal choice.
