Product Introduction
Heavy-Duty Cutting Tool Design
01
Heavy-Duty Cutting Tool Design
Features 38CrMoAl high-strength alloy steel blades with heat-treated hardness of HRC58-62, delivering three times the lifespan of standard cutters
02
Low-Energy Operation
Optimized cutterhead layout and transmission angles achieve 40% energy savings over traditional designs, with power consumption ≤25kWh per ton processed.
03
Broad Applicability
Processes diverse plastics including PET preforms, HDPE pipes, and PP films, with adjustable particle size from 10-80mm.
Technical Parameters
Model Stator Knives
(Pcs)		 Rotating
(Pcs)		 Screen Diameter Feeding Open Cpacity
(kg/h)		 Power
(kw)		 Dimensions
(mm)		 Weight
(kg)
CF3-400 2 4 ф8-50 400*300 400-800 18.5/22 1700*660*1650 700
CF3-500 4 6 ф8-50 500*300 500-1000 30 1700*660*1720 850
CF3-600 2 3/4 ф8-50 600*400 600-1200 37 1850**800*1900 1300
CF3-750 6 9 ф8-50 750*500 800-1500 37/45 2200*1600*1800 2200
Machine Detail Diagram

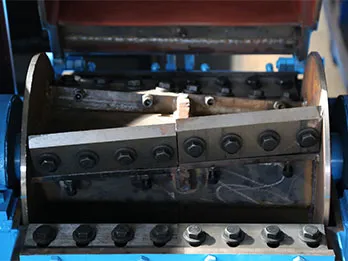

400, 500 Type Heavy-Duty Crusher

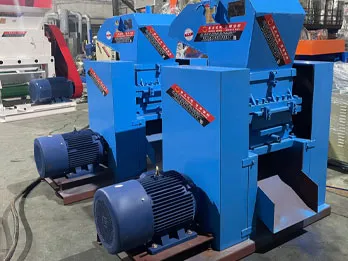

400, 500 Type Heavy-Duty Crusher

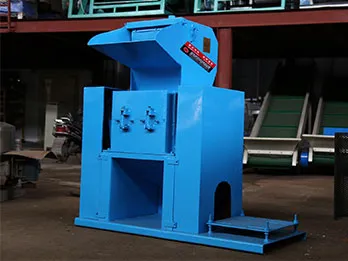

400, 500 Type Heavy-Duty Crusher

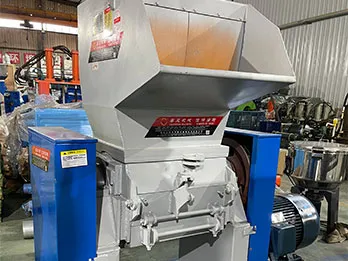

400, 500 Type Heavy-Duty Crusher
400, 500 Type Heavy-Duty Crusher
400, 500 Type Heavy-Duty Crusher
400, 500 Type Heavy-Duty Crusher
400, 500 Type Heavy-Duty Crusher
Videos
Service and Support
  • 24-hour online service
  • 2-year warranty
  • Professional offline service
  • Global agency consulting service
sign-4.webpDownload Manual sign-5.webpVideo
